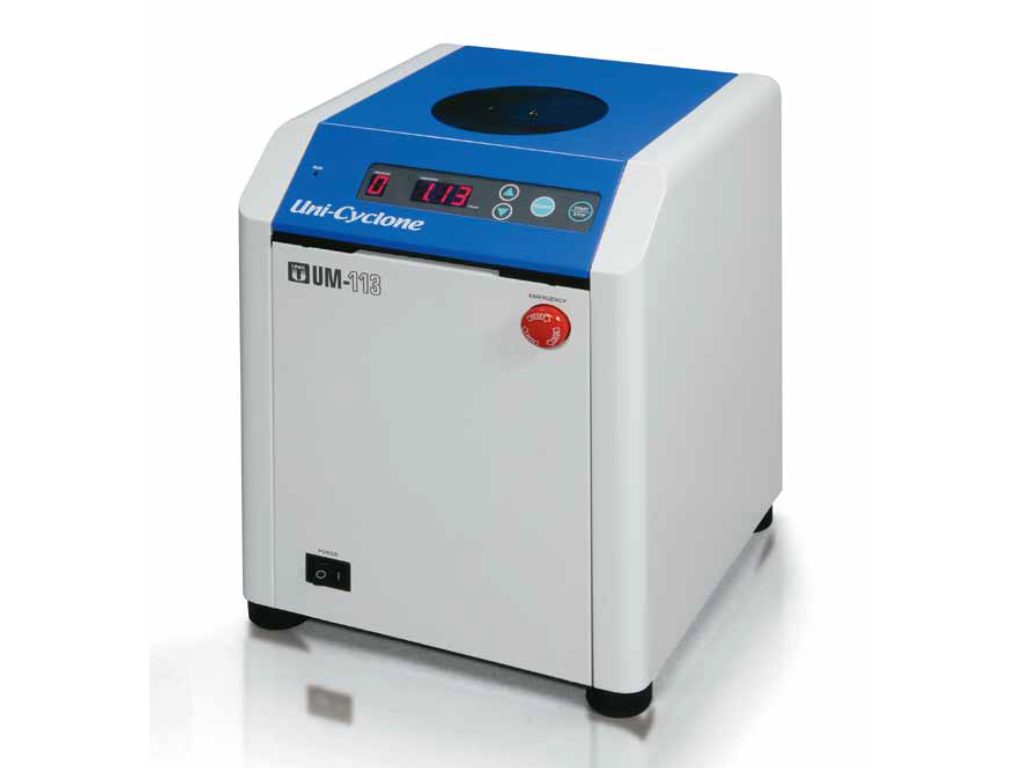

UM-113(C)/S 高速攪拌脫泡機|JAPAN UNIX

最大限度地發揮焊錫膏的潛力，進一步提高高密度平面組裝生產效率的專用攪拌機。

最適合對高黏度材料進行攪拌,脫泡的焊錫膏攪拌機，能用來攪拌銀膠、各種黏著劑、環氧樹脂、半導體材料和化妝品。

功能說明：

• 最大限度地發揮焊錫膏的潛力，進一步提高，高密度表面貼裝的生產率‧
• 在短短2分鐘內，使焊錫膏處於打印最佳狀態‧
• 消除操作者攪拌時產生的不均勻‧
• 需攪拌材料從冰箱中取出後，即可以攪拌‧
• 用於市售的焊膏容器兼容‧
• 可選配，針筒式治具‧

Specifications
Model	UM-113S(C) General paste mixer	UM-117 Mixers	UM-118 Mixers	UM-125 Mixers	UM-113(C) Solder paste mixer
Main Application	Mixing and defoaming of different materials(*)				Mixing and defoaming of solder paste
Timer setting	0 sec to 99 min 50sec(Note 1)				0 sec to 99 min 50 sec(Note 1)
Centrifugal rotation speed	100 to 2000 rpm (Note 2)	100 to 2000 rpm (Note 2)	100 to 1500 rpm (Note 2)	100 to 1000 rpm (Note 2)	100 to 1000 rpm (Note 2)
Self-rotation speed	25% of centrifugal rotation	20% of centrifugal rotation	20 to 70% ofcentrifugal rotation (Note 3)	17% of centrifugal rotation	25% of centrifugal rotation
Mixing weight(NET)	80g x 1cup(120ml)	0 to 500g x 2cpus(300ml)		0 to 1kg x 2cups(1,100ml max.)	500g container available on the market, Ø62
Memory	10 (Note 4)				10 (Note 4)
Speed change program	●				●
Intermittent program	●				●
PC management software	Standard accessory				Standard accessory
Safety Funcition	Door sensor, vibration sensor, rotation sensor, and emergency stop switch				Door sensor, vibration sensor, rotation sensor, and emergency stop switch
External dimensions(mm)	280W X 280D X 410H	360W X 360D X 451H	360W X 360D X 451H	470W X 500D X 550H	280W X 280D X 410H
Weight of the main unit(K.g)	21	30	37	40	21
Number of containers to be simultaneously mixed	1 container	2 containers	2 containers	2 containers	1 container
Operating ambient environment	Single-phase 100 to 120V AC or 200 to 240V AC, 50/60HZ				Single-phase 100 to 120V AC or 220 to 230V AC, 50/60Hz

產品規格
型號	UM-113 焊錫膏攪拌脫泡機 / UM-113S 通用焊錫膏攪拌脫泡機	UM-117 攪拌脫泡機	UM-118 攪拌脫泡機	UM-125 攪拌脫泡機
攪拌容量	NET80g(約120ml) x 1	NET500g(約300ml) x 2	NET500g(約300ml) x 2	NET 1kg(約1100ml) x 2
公轉速度	100~2000rpm		100~1500rpm	100~1000rpm
自轉速度	公轉的25%固定	公轉的20%固定	公轉的20%~70%可變	公轉的17%固定
電源	單相AC100-110V±10%, AC230V±10% 50/60Hz
外型尺寸	280(W) x 280(D) x 410(H) mm	360(W) x 360(D) x 451(H) mm	360(W) x 360(D) x 451(H) mm	470(W) x 500(D) x 550(H) mm
機體重量	21kg	30kg	37kg	40kg
