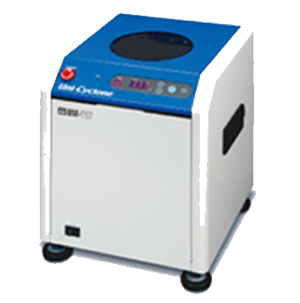

UM-117 高速攪拌脫泡機|JAPAN UNIX

首頁 » UM-117 高速攪拌脫泡機|JAPAN UNIX

型號：JAPAN UNIX UM-117

Specifications
Model	UM-113S(C) General paste mixer	UM-117 Mixers	UM-118 Mixers	UM-125 Mixers	UM-113(C) Solder paste mixer
Main Application	Mixing and defoaming of different materials(*)				Mixing and defoaming of solder paste
Timer setting	0 sec to 99 min 50sec(Note 1)				0 sec to 99 min 50 sec(Note 1)
Centrifugal rotation speed	100 to 2000 rpm (Note 2)	100 to 2000 rpm (Note 2)	100 to 1500 rpm (Note 2)	100 to 1000 rpm (Note 2)	100 to 1000 rpm (Note 2)
Self-rotation speed	25% of centrifugal rotation	20% of centrifugal rotation	20 to 70% ofcentrifugal rotation (Note 3)	17% of centrifugal rotation	25% of centrifugal rotation
Mixing weight(NET)	80g x 1cup(120ml)	0 to 500g x 2cpus(300ml)		0 to 1kg x 2cups(1,100ml max.)	500g container available on the market, Ø62
Memory	10 (Note 4)				10 (Note 4)
Speed change program	●				●
Intermittent program	●				●
PC management software	Standard accessory				Standard accessory
Safety Funcition	Door sensor, vibration sensor, rotation sensor, and emergency stop switch				Door sensor, vibration sensor, rotation sensor, and emergency stop switch
External dimensions(mm)	280W X 280D X 410H	360W X 360D X 451H	360W X 360D X 451H	470W X 500D X 550H	280W X 280D X 410H
Weight of the main unit(K.g)	21	30	37	40	21
Number of containers to be simultaneously mixed	1 container	2 containers	2 containers	2 containers	1 container
Operating ambient environment	Single-phase 100 to 120V AC or 200 to 240V AC, 50/60HZ				Single-phase 100 to 120V AC or 220 to 230V AC, 50/60Hz
